QD X-DB Exhaust Sound Controller | MV Agusta

Product Overview

Customise your MV Agusta's exhaust sound with the QD X-DB Exhaust Sound Controller, an electronic exhaust valve modulation system designed for selected MV Agusta Brutale, Dragster, F3 and Turismo Veloce motorcycles.

Developed by QD Exhaust, the X-DB system integrates with the motorcycle's original electrical wiring and operates through the factory exhaust valve, servomotor and operating cables. This allows the rider to control exhaust valve positioning using a dedicated electronic management interface without replacing the original valve mechanism.

The system features five adjustable valve positions, including fully closed, fully open and three intermediate settings. These provide progressive control over the valve opening, allowing riders to adjust exhaust sound characteristics and valve behaviour according to their preferred configuration.

A compact handlebar-mounted switch panel provides convenient operation. Pressing the green button opens the valve by one step, while pressing the red button closes it by one step. Holding either button for two seconds selects the corresponding fully open or fully closed position.

The MV Agusta range includes five motorcycle-specific configurations covering selected Euro 2, Euro 3, Euro 4 and Euro 5 applications, alongside the Brutale 1000 RS and RR. Each listed version features a built-in ESE (Exhaust Servo Eliminator) and dedicated wiring for the supported motorcycle.

Compatible Models

· MV Agusta Brutale / Dragster / F3 800 Euro 2 - V0103850
· MV Agusta Brutale / Dragster / F3 800 Euro 3 - V0103851
· MV Agusta Brutale / Dragster / F3 / Turismo Veloce 800 Euro 4 - V0103852
· MV Agusta Brutale / Dragster / F3 / Turismo Veloce 800 Euro 5 - V0103853
· MV Agusta Brutale 1000 RS / RR - V0103855

Fitment Note: Select the correct MV Agusta model and emissions specification before ordering. The Euro 2, Euro 3, Euro 4 and Euro 5 versions are separate applications with different QD part numbers. Confirm the applicable model years with QD Exhaust.

Key Features & Specifications

· Manufacturer: QD Exhaust
· Product: X-DB The Sound Controller
· Product Type: Electronic Exhaust Valve Modulation Kit
· Valve Adjustment: Five Selectable Positions
· Adjustment Range: Fully Closed, Three Intermediate Positions and Fully Open
· Control Interface: Electronic Management Module
· Handlebar Controls: Red and Green Two-Button Switch Panel
· Green Button: Opens Valve by One Step
· Red Button: Closes Valve by One Step
· Quick Adjustment: Two-Second Hold for Full Opening or Closing
· Electrical Connection: MV Agusta-Specific Wiring Harness
· ESE: Built-in Exhaust Servo Eliminator
· Original Components: Factory Exhaust Valve, Servomotor and Cables Retained
· Available Variations: Five MV Agusta Applications

Why Choose the QD X-DB Sound Controller?

· Adjustable Exhaust Sound: Allows progressive adjustment of exhaust sound characteristics through valve positioning.
· Five-Stage Control: Offers greater flexibility than a simple fully open or fully closed arrangement.
· Original System Integration: Operates with the existing MV Agusta exhaust valve components.
· Convenient Handlebar Adjustment: Simple two-button operation allows straightforward control.
· Quick Full-Range Selection: Access fully open or fully closed positions using a two-second button hold.
· Dedicated MV Agusta Applications: Individual configurations accommodate supported motorcycle models and emissions versions.
· Integrated ESE: Built-in Exhaust Servo Eliminator included in each listed MV Agusta configuration.

What's Included?

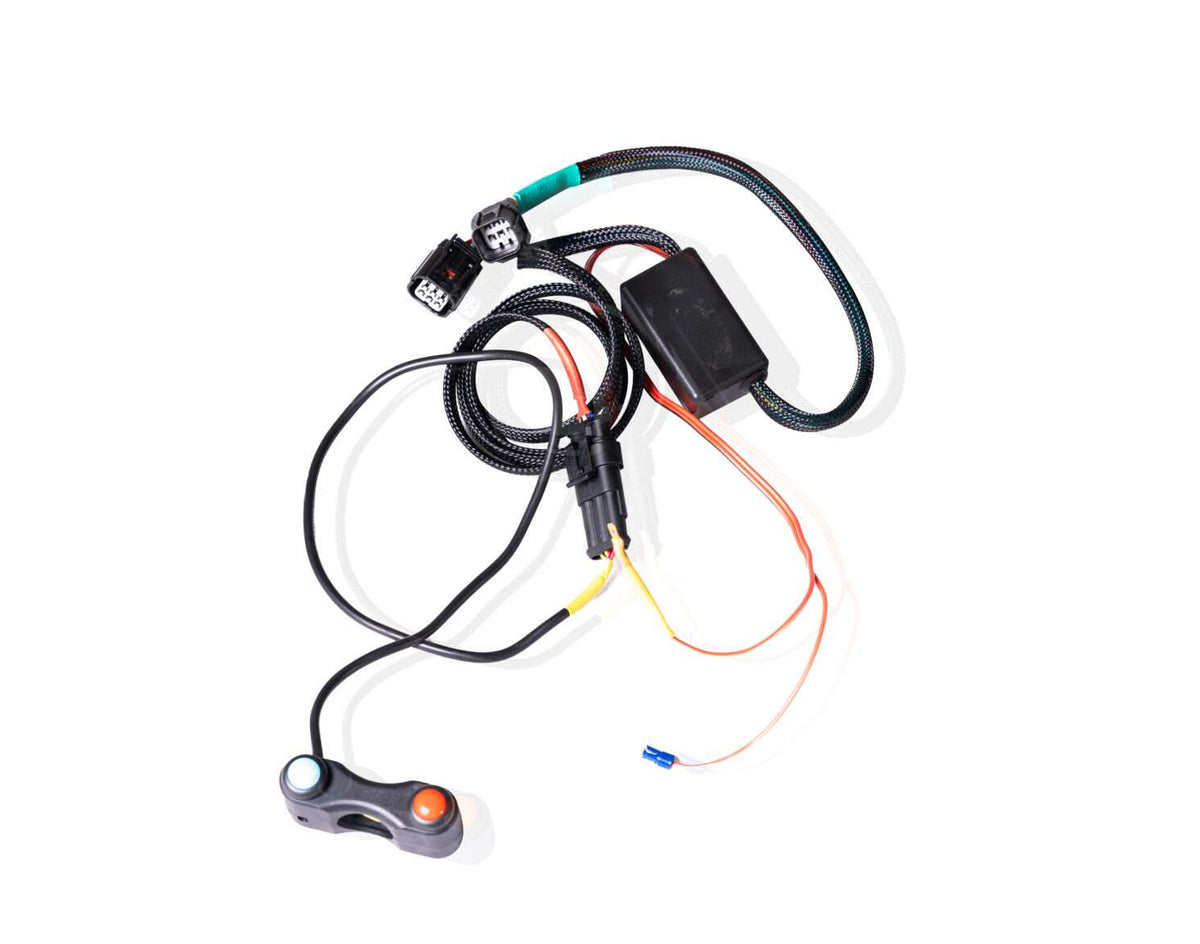

· 1 x QD X-DB Electronic Management Interface
· 1 x MV Agusta-Specific Wiring Harness
· 1 x Handlebar Switch Panel with Red and Green Buttons

Assembly Instructions and Warnings

· Select the correct MV Agusta model, emissions version and QD part number before ordering.
· Follow the installation instructions provided by QD Exhaust for the selected application.
· Connect the electronic management interface using the supplied motorcycle-specific wiring harness.
· Retain the original exhaust valve, servomotor and operating cables.
· Position the handlebar switch securely without restricting steering movement or existing controls.
· Secure electrical wiring away from hot exhaust components and moving parts.
· Important - Road Use: This product is NOT APPROVED for road use. Fitting it invalidates the vehicle's approval. Its use is entirely the user's responsibility.
